01-0790725-01 Whelen Orion 650 Green Pos/ACL Wingtip Assembly 14VDC

Manufacturer: Whelen Aerospace Technologies
Part Number: 01-0790725-01
Weight:
Dimensions:
ECCN:
Sold Per:
Cage Code:
Condition: New
$599.00
Model OR6501G --- Green: ORION™ 650 POS Light ACL Wingtip Assembly • 14 VDC --- Approvals: STC/TSO/ETSO-C96a Class III / TSO/ETSO-C30c Type II
Availability: 10 in stock
+ -
Products specifications
Weight 0.3 lbs
Dimensions 3.95L x 1.68W x 1.79H inches
ECCN 9A991.d
Sold Per Each
Condition New
Description

The Orion 650 series products incorporate RED or GREEN Forward Position Lights as well as the WHITE flashing Anti-Collision Light function. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. Fully FAA/TSO & STC approved.



Model Part # Description   Approvals
OR6501G 01-0790725-01
Green
Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
   FAA TSO-C96a Class III / TSO-C30c Type II
OR6501R 01-0790725-02
Red
Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
   FAA TSO-C96a Class III / TSO-C30c Type I
OR6502G 01-0790725-11
Green
Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
   FAA TSO-C96a Class III / TSO-C30c Type II
OR6502R 01-0790725-12
Red
Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC

   FAA TSO-C96a Class III / TSO-C30c Type I
Legacy Product Part Number Legacy Product Model Number Orion™ 650 Part Number Orion™ 650 Model Number
01-0770054-01 A650PG28 01-0790725-11 OR6502G
01-0770054-03 A650PR28 01-0790725-12 OR6502R
01-0770054-00 A650PG14 01-0790725-01 OR6501G
01-0770054-02 A650PR14 01-0790725-02 OR6501R
01-0771110-03 7111003 01-0790725-12 OR6502R
01-0771110-04 7111004 01-0790725-11 OR6502G
01-0771110-01 7111001 01-0790725-02 OR6501R
01-0771110-02 7111002 01-0790725-01 OR6501G
01-0770001-42 W1285PG28 01-0790725-11 OR6502G
01-0770001-52 W1285PR28 01-0790725-12 OR6502R
01-0770001-41 W128514 01-0790725-01 OR6501G
01-0770001-51 W128514 01-0790725-02 OR6501R
01-0771105-03 7110503 01-0790725-12 OR6502R
01-0771105-04 7110504 01-0790725-11 OR6502G
01-0771105-01 7110501 01-0790725-02 OR6501R
01-0771105-02 7110502 01-0790725-01 OR6501R
Customers who bought this item also bought

M22759/16-2-9 ELECTRICAL WIRE (2 GA)

Picture of M22759/16-2-9 ELECTRICAL WIRE (2 GA)
Part #: M22759/16-2-9
$0.47
Call To Order

SL-STD-1411 Superior Air Parts Aircraft Products NUT

Picture of SL-STD-1411 Superior Air Parts Aircraft Products NUT
Part #: SL-STD-1411
$0.65

M27500-20TG4T14 WIRE- TWISTED SHIELDED

Picture of M27500-20TG4T14 WIRE- TWISTED SHIELDED
Part #: M27500-20TG4T14
$2.14

SL-STD-1410 Superior Air Parts Aircraft Products NUT

Picture of SL-STD-1410 Superior Air Parts Aircraft Products NUT
Part #: SL-STD-1410
$1.69

01-0790725-02 Whelen Orion 650 12V Red LED Pos/ACL light

Picture of 01-0790725-02 Whelen Orion 650 12V Red LED Pos/ACL light
Part #: 01-0790725-02
$599.00

SLR75906 Superior Air Parts Aircraft Products GASKET

Picture of SLR75906 Superior Air Parts Aircraft Products GASKET
Part #: SLR75906
$10.05

SL-STD-2180 Superior Air Parts Aircraft Products HOSE

Picture of SL-STD-2180 Superior Air Parts Aircraft Products HOSE
Part #: SL-STD-2180
$6.27

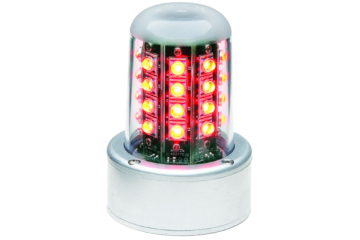

01-0771080-51 Whelen 7108051 LED Red, 14 VDC, 2.6" mount
